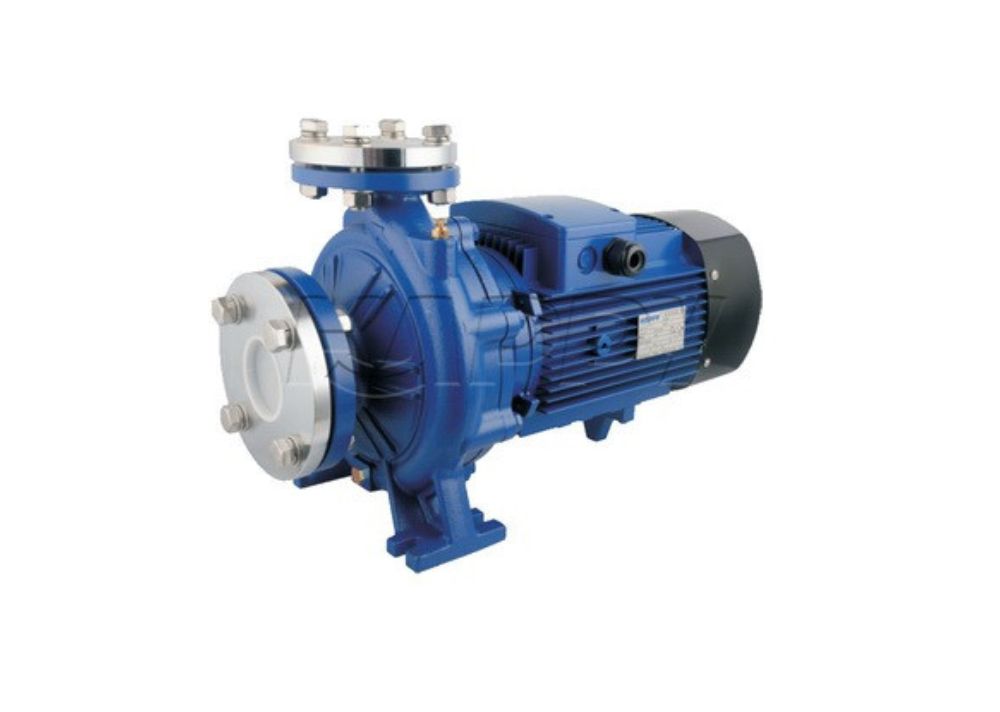

SC 32



Application

  • Water Supply
  • Pressure Boosting
  • Irrigation
  • Water Circulation
  • Fire Fighting sets
  • Industrial Application
  • Agricultural Application

Operating Conditions

  • Manometric suction liftup to 8m
  • Liquid temperature between -10°C and +120°C
  • Ambient temperature between -10 C and +40C
  • Max.pressure in pump body 16bar (PN16)

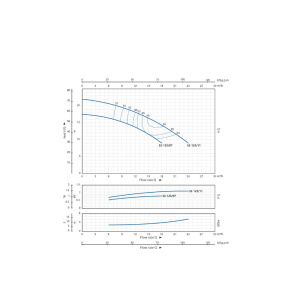

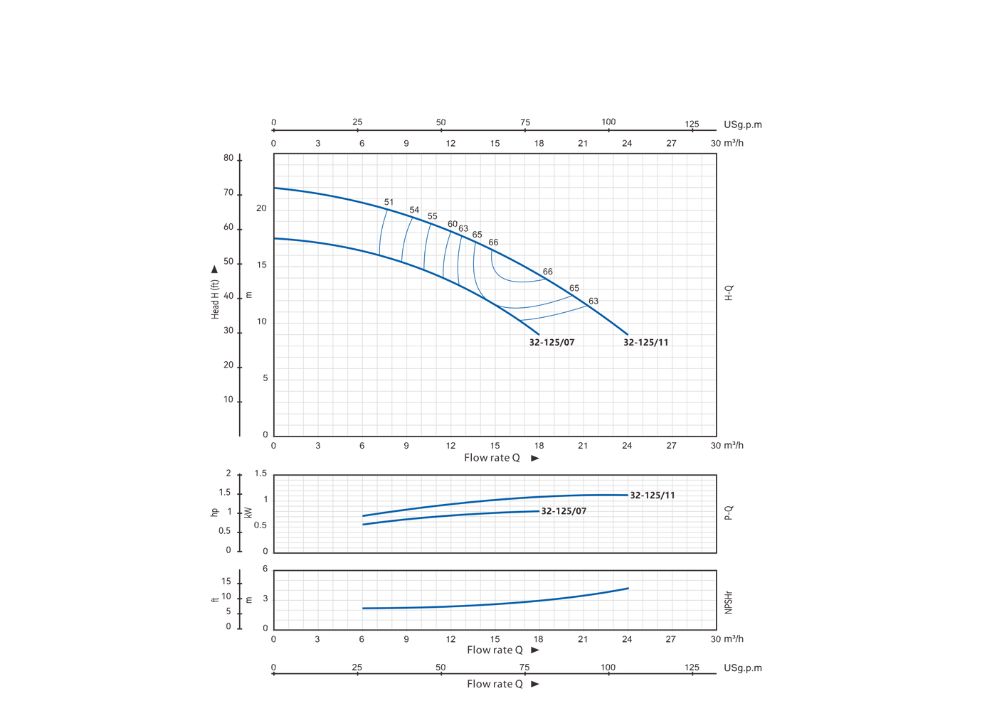

Performance Range

  • Head up to 115m
  • Power up to 160kW
  • Diameter up to 125mm
  • For rate upto 400000 Liters per hour

Technical Data

Model Power Dimension mm Weight (Kg)
  KW HP a f h h1 h2 n n1 n2 w1 w2 s 1~ 2~
SC 32-125/7.5 0.75 1 80 435 252 112 140 197 140 190 37 37 8 27 24
SC 32-125/1.1 1.1 1.5 80 435 252 112 140 197 140 190 28 25
SC 32-160/1.5 1.5 2 80 430 292 132 160 212 190 240 38 34
SC 32-160/2.2 2.2 3 80 430 292 132 160 212 43 39
SC 32-200/3 3 4 80 495 340 160 180 260 54 50
SC 32-200/40 4 5.5 56 52
SC 32-250/5.5 5.5 7.5 88 590 405 180 219 333 250 328 49 49 10   66
SC 32-250/7.5 7.5 10 88 590 405 180 219 333 250 328 49 49 10   72
SC 32-250/5.5BF 5.5 7.5(Big
Flow)		 154 612 360 160 200 288 212 272 37 37 8   73
SC 32-250/7.5BF 7.5 10(Big
Flow)		   73

Product Video

Datasheet/Downloads SC 32 Datasheet
