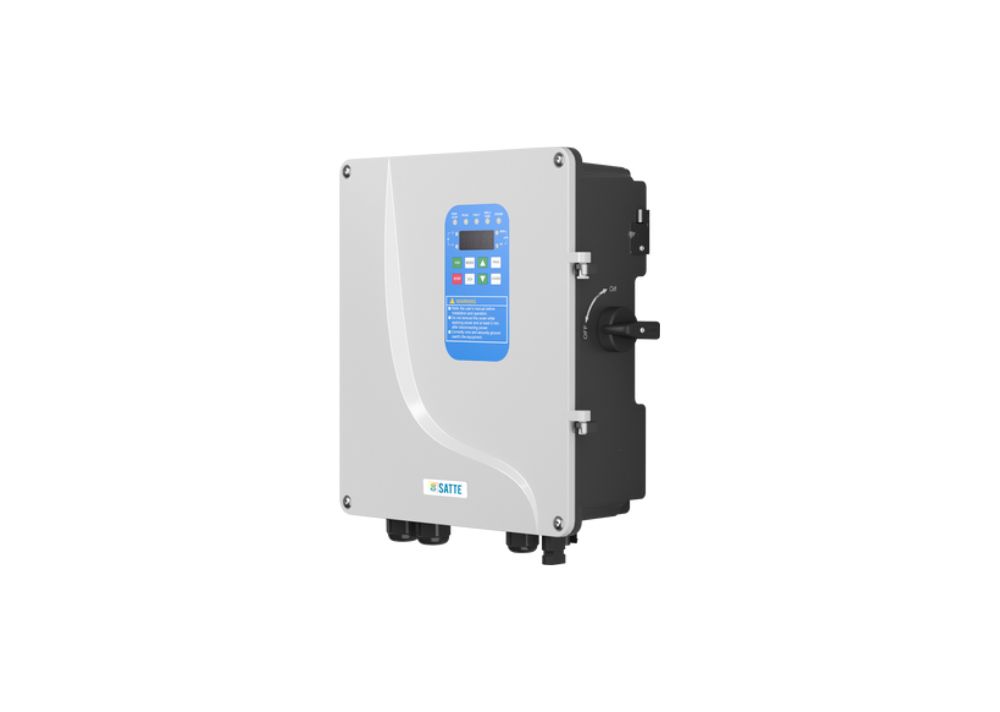

SLVD4
SLVD4
The add to cart button will appear once you select the values above
Typical Applications
Agriculture Irrigation: Efficiently powers water pumps for crop
irrigation in remote areas.
Livestock Watering: Supplies consistent water flow for animal
watering systems on farms.
Rural Water Supply: Provides clean water to rural communities
without reliable grid access.
Aquaculture Systems: Powers water pumps to maintain oxygen
levels in fish farming ponds.
Solar Water Pumps: Uses solar energy to run water pumps,
reducing electricity costs.
Greenhouses: Controls irrigation systems to maintain optimal
moisture levels for plant growth.
Remote Villages: Delivers water for household use in off-grid,
rural locations.
Desert Agriculture: Supports farming operations in arid areas by
powering irrigation systems.
Community Wells: Powers pumps to extract water for
communal wells and storage tanks.
Municipal Water Systems: Assists in water distribution for
small-scale municipal water facilities
Parameter
Value
Rated Power
2.2 kW
Max. DC Input Current
13 A
Max. DC Input Voltage
440 V
Adapting Motor Power
2200 W
Adapting Motor Voltage
220 V
Recommended MPP Voltage
≥ 180 V
Max. AC Input Current
13 A
Output Frequency
0 - 200 Hz
MPPT Efficiency
99%
Net Weight
5.5 kg
Gross Weight
6.5 kg
Model
SLVD4 /2.2S
Warranty
3 years
Technical Data
Model
Power
Rated AC
Output
Current (A)
Max AC
Input
Current (A)
Max AC
Input
current (A)
Max DC
Input
voltage
Max AC
Input
voltage
Adapting
Motor
Voltage (V)
Recomme
nded MPP
Voltage
Dimensions (mm)
Weight
(Kg)
KW
HP
L
W
H
SLVLD4 1.1S
1.1
1.5
15
15
20
200
1PH 85-
265V
110
120-160V
266
296
111
5.5
SLVLD4 2.2S
2.2
3
11
13
13
1PH 150-
265V
220
180-360V
266
296
111
5.5
SLVD4 3.0S
3
4
7
13
13
440
1PH 150-
265V
300
250-360V
266
296
111
5.5
Product Video
Datasheet/Downloads
SLVD4 Datasheet
