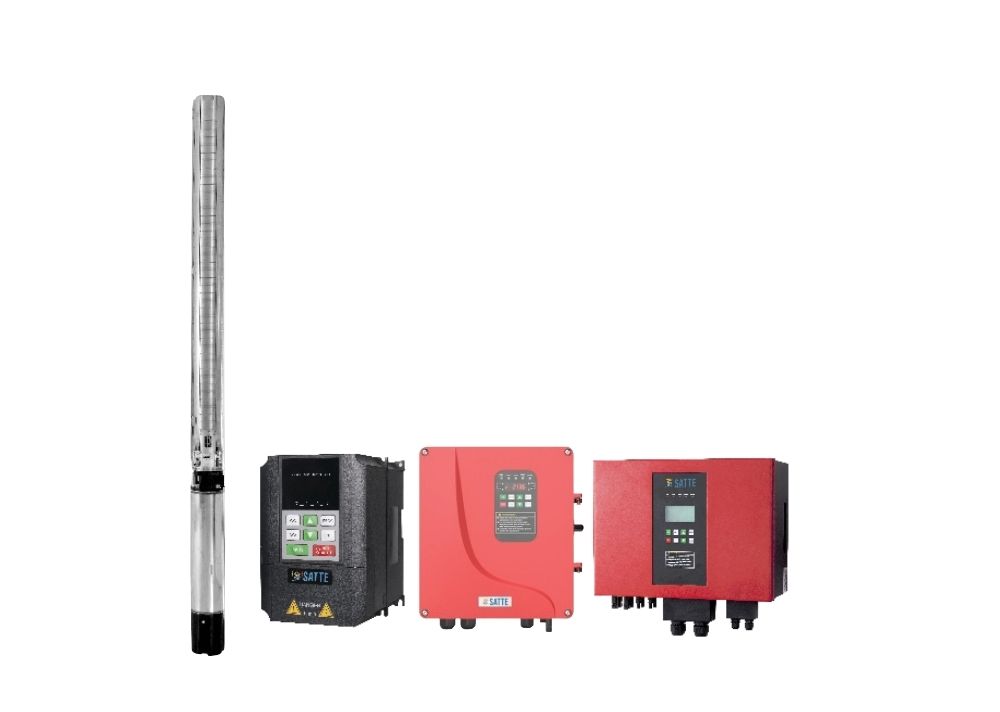

SSP 46



Typical Applications

  • Circulation or boosting for clean water, demineralized water.
  • Water supply, irrigation systems.
  •  Powered by electricity or solar energy.
  •  Water boosting.
  •  Other industrial application.
  •  Come in different sizes and capacities to fit various applications

Operating Conditions

  • Pumped Liquid: Thin, clean chemically non-aggressive liquids without solid particles or fibres.
  • Max. Liquid Temperature: +30°C
  • Max. Water Depth: 300m
  • Min. Borehole Diameter: 200m
  • Enclosure Class : IP68 Insulation
  • Class: F Voltage: 3x415V
  • Speed:2900rpm

Technical Data

Model Motor Full Load
Current (A)		 I Start/I Dimensions (mm) Weight
(kg)		 Recommended
SATTE Controller (kW)
kW HP A B C E
SSP 46-5 7.5 10 18.5 4.4 1495 660 835   62 11
SSP 46-7 11 15 26 4.8 1791 730 1061   74 15
SSP 46-10 15 20 34.5 5.0 2185 785 1400   86 18
SSP 46-12 19 25 42 5.5 2486 860 1626 149 99 22
SSP 46-15 22 30 47.5 5.4 2885 920 1965   111 30
SSP 46-17 26 35 56 4.9 3100 1157 2191   120 37
SSP 46-19 30 40 63.5 4.7 3467 1050 2417   133 48

Product Video

Datasheet/Downloads SSP 46 Datasheet
