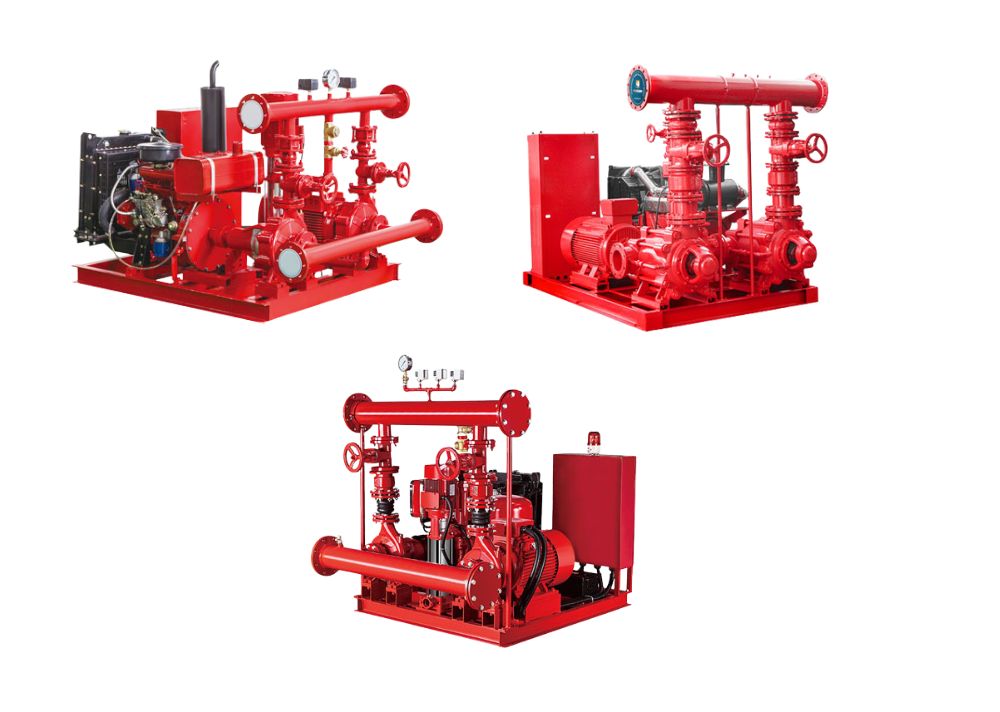

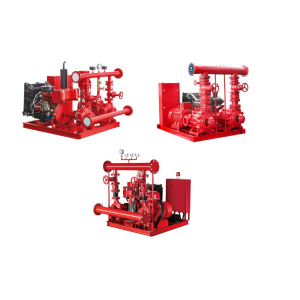

SEDJ



Typical Application

  • Fire Sprinkler System's Water Supply- Essential for ensuring NFPA20 standards compliance in hotels, factories, hospitals, and commercial buildings.
  • Fire Hydrant's Water Supply- Ensures a reliable water source for emergency firefighting operations in urban and suburban areas.
  • Hotels- Safeguards guests and property by supplying water for fire suppression systems in case of emergencies.
  • Hospitals- Critical for maintaining safety and compliance standards, providing water for fire protection systems in healthcare.
  • Commercial Buildings- Supports fire safety protocols by supplying water for sprinkler systems in office complexes and retail spaces.
  • Schools- Enhances safety measures by providing water for fire suppression systems in educational institutions.

Operating Conditions

  • Inlet:50-150mm
  • Outlet:32-125mm
  • Flow Capacity:26-4405GPM
  • Head Pressure:1-14BAR
  • Power Range:4-325kw

Components

  • Electric pump: end suction pump, split case pump;
  • Diesel pump: flow capacity is the same as that of electric pump
  • Jockey pump: a kind of vertical pump with small flow capacity
  • Control panel
  • Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joints, pressure switches etc.;

 Technical data


Model
 Diesel pump — SLD Jockey pump — SARV / SAR vertical multistage
Type Pump kW H at duty m Engine HP Engine gross kW Fuel tank L Main pump churn m Type kW HP H at 1 m³/h FLC A Supply DN
SEDJ 50/6 SLD 32-250/7.5 7.5 67.5 15 11.2 60 69.5 SARV 1-15 0.75 1 84 5 220–240 V 1~ DN25
SEDJ 50/9 SLD 32-250/15 15 93.6 27 20.1 110 106 SARV 1-21 1.1 1.5 117 7.2 220–240 V 1~ DN25
SEDJ 100/7 SLD 40-250/15 15 77.7 27 20.1 110 84.5 SARV 1-17 1.1 1.5 95 7.2 220–240 V 1~ DN25
SEDJ 100/8 SLD 40-250/18.5 18.5 83.4 32 23.9 130 90 SARV 1-17 1.1 1.5 95 7.2 220–240 V 1~ DN25
SEDJ 100/9 SLD 40-315/18.5 18.5 93.4 32 23.9 130 106 SARV 1-21 1.1 1.5 117 7.2 220–240 V 1~ DN25
SEDJ 200/6 SLD 50-250/15 15 62.2 27 20.1 110 68.5 SARV 1-15 0.75 1 84 5 220–240 V 1~ DN25
SEDJ 250/7 SLD 50-250/22 22 80.3 40 29.8 160 89.5 SARV 1-17 1.1 1.5 95 7.2 220–240 V 1~ DN25
SEDJ 350/8 SLD 65-250/37 37 87.6 75 55.9 300 92 SARV 1-19 1.1 1.5 106 7.2 220–240 V 1~ DN25
SEDJ 500/7 SLD 80-250/45 45 84.1 80 59.7 320 92 SARV 1-19 1.1 1.5 106 7.2 220–240 V 1~ DN25
SEDJ 500/10 SLD 65-315/55 55 111.3 100 74.6 400 122 SARV 1-23 1.1 1.5 128 7.2 220–240 V 1~ DN25

Product Video

Datasheet/Downloads SEDJ Datasheet
