| Parameter |
SCT 150 |
SCT 200 |
SCT 300 |
| System storage capacity |
150 L |
200 L |
300 L |
| Typical household |
up to 5 people |
up to 7 people |
up to 10 people |

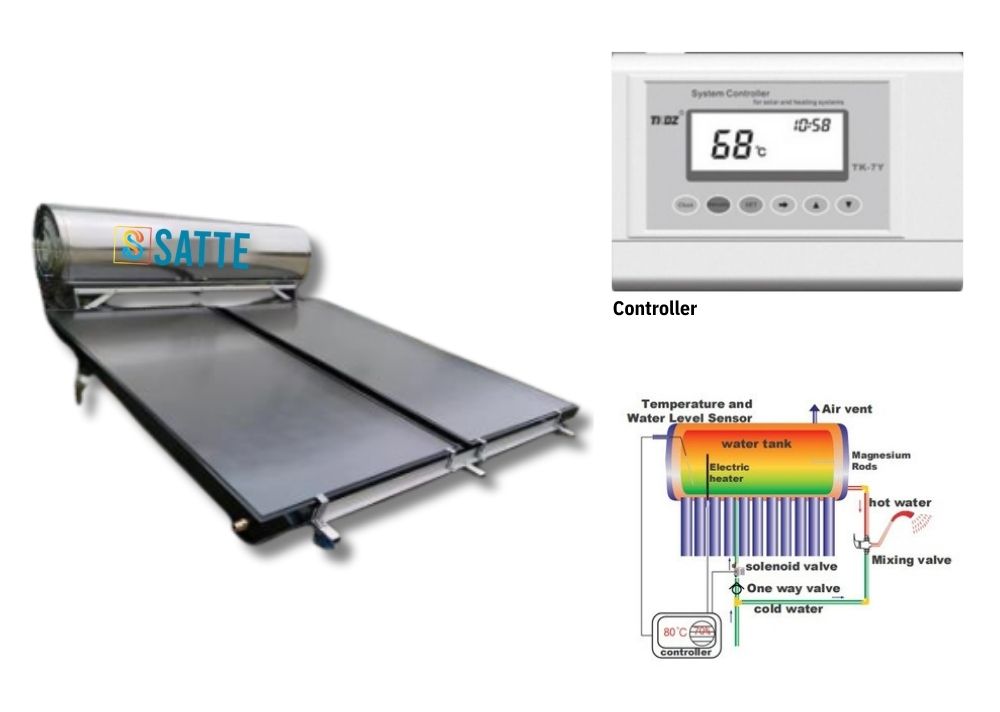

| Flat plate collectors |
1 × FCP 2.0 |
1 × FCP 2.4 |
2 × FCP 2.0 |
| Collector gross area |
2.0 m² |
2.4 m² |
4.0 m² |
| Collector panel size L × W × H |
2000 × 1060 × 80 mm |
2000 × 1310 × 80 mm |
2 × (2000 × 1060 × 80 mm)
|
| Collector weight |
32 kg |
38 kg |
64 kg |
| Collector fluid content |
12 L |
15 L |
24 L |
| Indicative heat output — high season (6.0 kWh/m²/day) |
11.0 kWh/day |
14.3 kWh/day |
22.3 kWh/day |
| Indicative heat output — low season (4.0 kWh/m²/day) |
7.4 kWh/day |
9.6 kWh/day |
14.9 kWh/day |
| Hot water delivery temperature |
45–90 °C (fit a thermostatic mixing valve — see Sheet 3) |
| Max. operating pressure |
Direct tank 6 bar · Indirect tank 4 bar |
| Max. operating temperature |
150 °C (collector stagnation) |
| Max. flow rate |
2 m³/h |
| Connections |
Inlet ½″ BSP · Outlet ½″ BSP |
| Frame angle |
27° (bracket for flat or pitched roof) |
| Backup heater |
1.5 kW or 2.0 kW, 230 V, with TK-7Y controller (optional) |
| Ambient / wind |
−5 °C to +50 °C · frame rated 130 km/h when anchored per manual |
| |
|
|
|
| Dimensions (mm) — see drawing |
| A — system width |
1000 |
1400 |
2100 |
| B — collector length |
2000 |
| C — overall length incl. frame |
2600 |
| D — tank length |
1170 |
1480 |
2300 |
| E — tank diameter |
520 |
| F — height at tank |
620 |
| |
|
|
|
| Weights |
| Empty weight |
65 kg |
75 kg |
105 kg |
| Operating weight (filled) |
215 kg |
275 kg |
405 kg |
