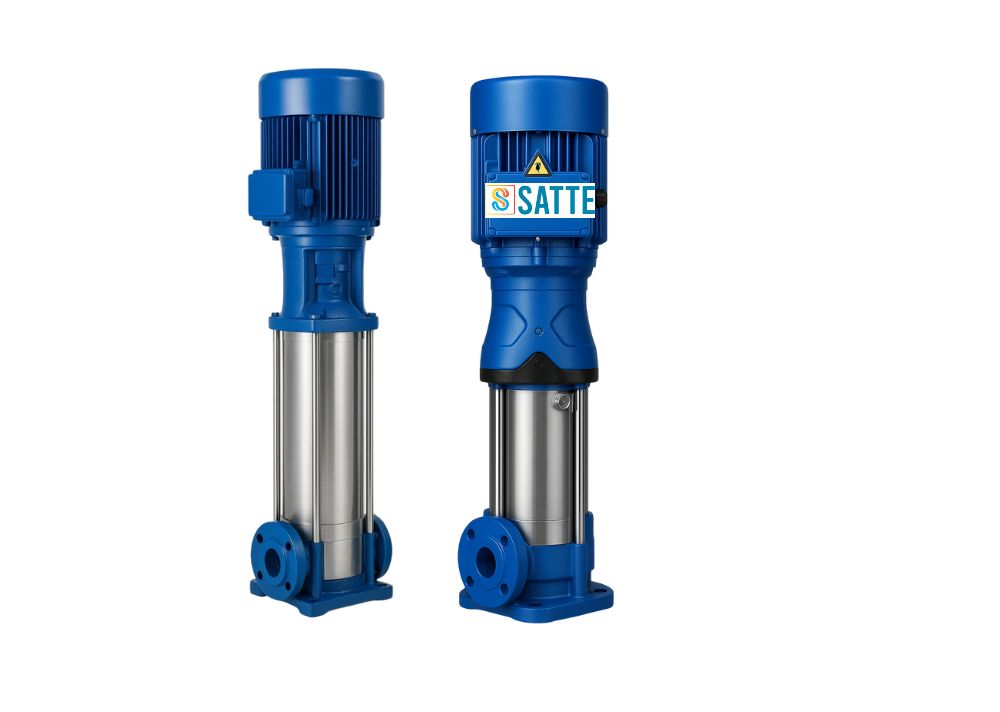

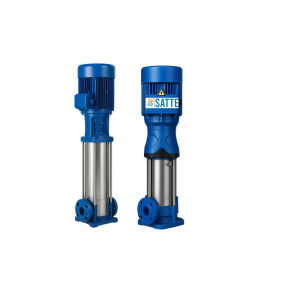

SAR 64



Typical Applications

  • Municipal water distribution-The pump can be used to supply water in urban and rural areas through municipal water supply systems.
  • High-rise buildings - Suitable for providing pressurized water to tall structures, ensuring consistent supply across different floors.
  • Agricultural irrigation - The pump can be employed in farming and agriculture to deliver water to crops, ensuring proper hydration for optimal growth.
  • Industrial processes - Suitable for transferring liquids in various industrial applications, such as manufacturing processes or chemical plants. Commercial facilities - Used in settings like hotels, resorts, and commercial buildings to transfer liquids for different purposes.

Operating Conditions

  • PumpedLiquids: Thin,clean,non-explosive liquids withoutsolid particles or fibres.
  • Liquid Temperature Range: -15°C to +120°C
  • Maximum Ambient Temperature: +50°C Maximum
  • Operating Pressure: 23 bar

Technical Data

Model
 Motor P2
Supply / voltage range
 Current at 50 Hz (A)
Motor eff. (%)
Rated flow Q (m³/h)
Head at rated Q (m)
Max. head (m)
Max. flow (m³/h)
Speed (rpm)
Max. press. (bar)
DN
 Dimensions (mm)
Weight (kg)
kW HP Full load In Start DOL Ist Soft start Iss B1 B2 B1+B2 D1 D2
SAR 64-1-1 4 5.5 3~ 380-415 V 7.7 50 23 86.8 64 12.9* 19 80 2900 1.9 DN100 561 355 916 230 188 93
SAR 64-1 5.5 7.5 3~ 380-415 V 11 68 32 87.8 64 19.9* 27 80 2900 2.6 DN100 561 390 951 260 208 105
SAR 64-2-2 7.5 10 3~ 380-415 V 14 91 42 88.5 64 26.6* 39 80 2900 3.8 DN100 644 390 1034 260 208 110
SAR 64-2-1 11 15 3~ 380-415 V 20 142 61 89.7 64 33.7* 46 80 2900 4.5 DN100 754 500 1254 330 255 182
SAR 64-2 11 15 3~ 380-415 V 20 142 61 89.7 64 40.5* 53 80 2900 5.2 DN100 754 500 1254 330 255 182
SAR 64-3-2 15 20 3~ 380-415 V 27 190 82 90.5 64 46.6* 66 80 2900 6.5 DN100 836 500 1336 330 255 196
SAR 64-3-1 15 20 3~ 380-415 V 27 190 82 90.5 64 53.6* 73 80 2900 7.2 DN100 836 500 1336 330 255 197
SAR 64-3 18.5 25 3~ 380-415 V 33 233 100 91 64 60.6* 80 80 2900 7.8 DN100 836 550 1386 330 255 221
SAR 64-4-2 18.5 25 3~ 380-415 V 33 233 100 91 64 67* 92 80 2900 9 DN100 919 550 1469 330 255 225
SAR 64-4-1 22 30 3~ 380-415 V 40 277 119 91.3 64 74* 100 80 2900 9.8 DN100 919 575 1494 360 285 258
SAR 64-4 22 30 3~ 380-415 V 40 277 119 91.3 64 81* 107 80 2900 10.5 DN100 919 575 1494 360 285 258
SAR 64-5-2 30 40 3~ 380-415 V 53 374 160 92 64 89* 121 80 2900 11.9 DN100 1001 650 1651 400 310 319
SAR 64-5-1 30 40 3~ 380-415 V 53 374 160 92 64 96* 128 80 2900 12.5 DN100 1001 650 1651 400 310 319
SAR 64-5 30 40 3~ 380-415 V 53 374 160 92 64 103.1* 136 80 2900 13.3 DN100 1001 650 1651 400 310 320
SAR 64-6-2 30 40 3~ 380-415 V 53 374 160 92 64 111.5* 150 80 2900 14.7 DN100 1084 650 1734 400 310 325
SAR 64-6-1 37 50 3~ 380-415 V 66 460 197 92.4 64 118.5* 157 80 2900 15.4 DN100 1084 650 1734 400 310 349
SAR 64-6 37 50 3~ 380-415 V 66 460 197 92.4 64 125.5* 164 80 2900 16.1 DN100 1084 650 1734 400 310 349
SAR 64-7-2 37 50 3~ 380-415 V 66 460 197 92.4 64 133.6* 179 80 2900 17.5 DN100 1166 650 1816 400 310 353
SAR 64-7-1 37 50 3~ 380-415 V 66 460 197 92.4 64 140.6* 186 80 2900 18.2 DN100 1166 650 1816 400 310 353
SAR 64-7 45 60 3~ 380-415 V 80 557 239 92.8 64 147.4* 193 80 2900 18.9 DN100 1166 685 1851 460 340 420
SAR 64-8-2 45 60 3~ 380-415 V 80 557 239 92.8 64 156* 207 80 2900 20.3 DN100 1248 685 1933 460 340 424
SAR 64-8-1 45 60 3~ 380-415 V 80 557 239 92.8 64 163* 215 80 2900 21.1 DN100 1248 685 1933 460 340 424

Product Video

Datasheet/Downloads SAR 64 Datasheet
