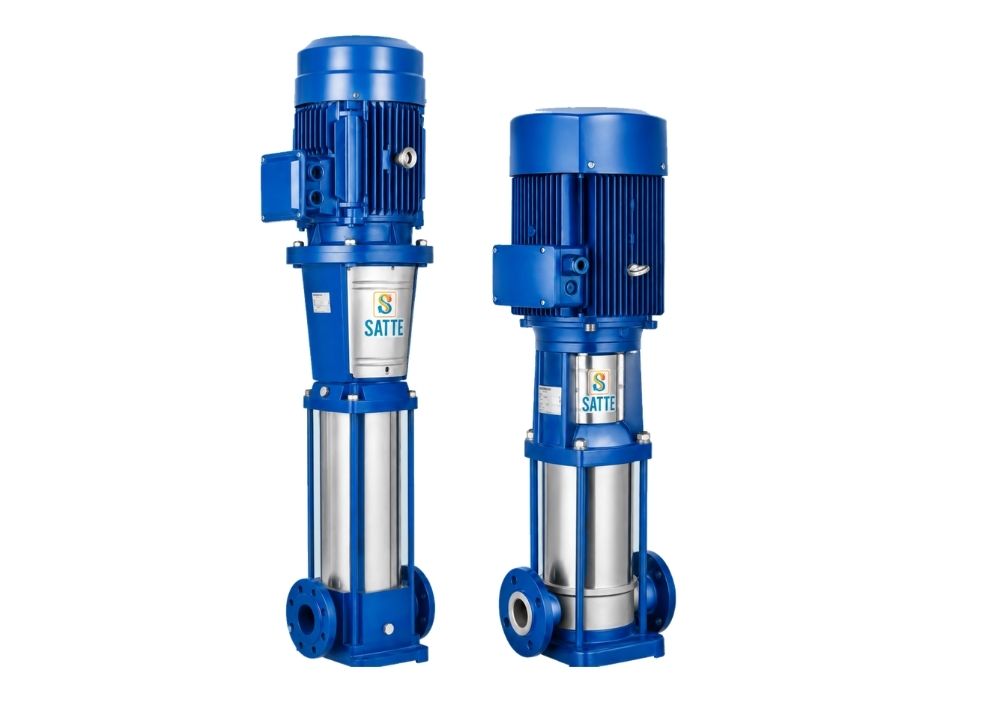

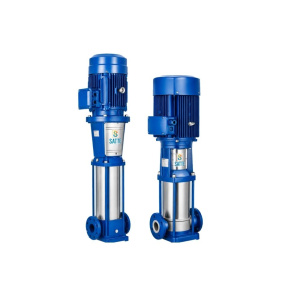

SAR 32



Typical Applications

  • Water supply: raw-water transfer, filtration and boosting duties in waterworks, district distribution, high-rise pressure boosting and packaged booster sets.
  • Industrial pressure boosting: process water systems, washing and cleaning plant and high-pressure flushing systems.
  • Industrial liquid transfer: cooling and air-conditioning circuits, boiler feed and condensate systems, machine-tool coolant supply, and mild acids and alkalis.
  • Water treatment: ultra-filtration, reverse osmosis, distillation, separators and swimming-pool circulation.
  • Irrigation: field and farm irrigation, sprinkler systems and drip irrigation.

Operating Conditions

  • Thin, clean, non-flammable and non-explosive liquids, free of solid particles or fibres.
  • Liquid temperature: standard version −15 °C to +70 °C; hot-water version +70 °C to +120 °C.
  • Maximum ambient temperature +40 °C; maximum installation altitude 1000 m.
  • Maximum pressure generated ranges from 1.4 bar on SAR 32-1-1 to 28.6 bar on SAR 32-16, model by model — see Technical Data.
  • Suction and discharge flanges to PN25-40/DN65.
  • Suction and discharge ports are in line and of equal bore, allowing the pump to be installed directly in a straight pipe run.
  • Pump head and motor are coupled by a rigid spacer coupling, so the mechanical seal can be changed without disturbing the pipework.
  • Non-self-priming: the pump must be fully primed and the required NPSH maintained at the inlet to avoid cavitation.
  • Above +40 °C ambient or above 1000 m altitude the motor output is derated and a larger motor frame must be selected. Motor totally enclosed, fan-cooled, protection IP55, insulation class F.
  • Optional intelligent controller protects against dry running, phase failure and overload.

Technical Data

Model
 Motor P2
Supply / voltage range
 Current at 50 Hz (A)
Motor eff. (%)
Rated flow Q (m³/h)
Head at rated Q (m)
Max. head (m)
Max. flow (m³/h)
Speed (rpm)
Max. press. (bar)
DN
 Dimensions (mm)
Weight (kg)
kW HP Full load In Start DOL Ist Soft start Iss B1 B2 B1+B2 D1 D2
SAR 32-1-1 1.5 2 1~ 220-240 V 9.5 43 29 72 32 9 14 40 2900 1.4 DN65 505 290 795 190 155 64
SAR 32-1 2.2 3 1~ 220-240 V 14 61 41 74 32 13 18 40 2900 1.8 DN65 505 290 795 190 155 68
SAR 32-2-2 3 4 3~ 380-415 V 5.9 38 18 85.8 32 20 29 40 2900 2.8 DN65 575 345 920 197 165 77
SAR 32-2 4 5.5 3~ 380-415 V 7.7 50 23 86.8 32 27 36 40 2900 3.5 DN65 575 355 930 230 180 85
SAR 32-3-2 5.5 7.5 3~ 380-415 V 11 68 32 87.8 32 33 47 40 2900 4.6 DN65 645 390 1035 260 208 100
SAR 32-3 5.5 7.5 3~ 380-415 V 11 68 32 87.8 32 40 54 40 2900 5.3 DN65 645 390 1035 260 208 100
SAR 32-4-2 7.5 10 3~ 380-415 V 14 91 42 88.5 32 46 65 40 2900 6.4 DN65 715 390 1105 260 208 109
SAR 32-4 7.5 10 3~ 380-415 V 14 91 42 88.5 32 53 72 40 2900 7.1 DN65 715 390 1105 260 208 109
SAR 32-5-2 11 15 3~ 380-415 V 20 142 61 89.7 32 60 83 40 2900 8.1 DN65 890 500 1390 330 255 181
SAR 32-5 11 15 3~ 380-415 V 20 142 61 89.7 32 67 90 40 2900 8.8 DN65 890 500 1390 330 255 181
SAR 32-6-2 11 15 3~ 380-415 V 20 142 61 89.7 32 74 101 40 2900 9.9 DN65 960 500 1460 330 255 185
SAR 32-6 11 15 3~ 380-415 V 20 142 61 89.7 32 81 108 40 2900 10.6 DN65 960 500 1460 330 255 185
SAR 32-7-2 15 20 3~ 380-415 V 27 190 82 90.5 32 88 119 40 2900 11.7 DN65 1030 500 1530 330 255 199
SAR 32-7 15 20 3~ 380-415 V 27 190 82 90.5 32 95 126 40 2900 12.4 DN65 1030 500 1530 330 255 199
SAR 32-8-2 15 20 3~ 380-415 V 27 190 82 90.5 32 102 136 40 2900 13.3 DN65 1100 500 1600 330 255 203
SAR 32-8 15 20 3~ 380-415 V 27 190 82 90.5 32 109 144 40 2900 14.1 DN65 1100 500 1600 330 255 203
SAR 32-9-2 18.5 25 3~ 380-415 V 33 233 100 91 32 117 154 40 2900 15.1 DN65 1170 550 1720 330 255 222
SAR 32-9 18.5 25 3~ 380-415 V 33 233 100 91 32 124 162 40 2900 15.9 DN65 1170 550 1720 330 255 222
SAR 32-10-2 18.5 25 3~ 380-415 V 33 233 100 91 32 131 175 40 2900 17.2 DN65 1240 550 1790 330 255 227
SAR 32-10 18.5 25 3~ 380-415 V 33 233 100 91 32 138 182 40 2900 17.8 DN65 1240 550 1790 330 255 227
SAR 32-11-2 22 30 3~ 380-415 V 40 277 119 91.3 32 148 193 40 2900 18.9 DN65 1310 575 1885 360 285 272
SAR 32-11 22 30 3~ 380-415 V 40 277 119 91.3 32 153 200 40 2900 19.6 DN65 1310 575 1885 360 285 272
SAR 32-12-2 22 30 3~ 380-415 V 40 277 119 91.3 32 160 211 40 2900 20.7 DN65 1380 575 1955 360 285 276
SAR 32-12 22 30 3~ 380-415 V 40 277 119 91.3 32 167 218 40 2900 21.4 DN65 1380 575 1955 360 285 276
SAR 32-13-2 30 40 3~ 380-415 V 53 374 160 92 32 174 230 40 2900 22.5 DN65 1450 650 2100 400 310 337
SAR 32-13 30 40 3~ 380-415 V 53 374 160 92 32 181 237 40 2900 23.2 DN65 1450 650 2100 400 310 337
SAR 32-14-2 30 40 3~ 380-415 V 53 374 160 92 32 189 247 40 2900 24.2 DN65 1520 650 2170 400 310 341
SAR 32-14 30 40 3~ 380-415 V 53 374 160 92 32 196 255 40 2900 25 DN65 1520 650 2170 400 310 341
SAR 32-15-2 30 40 3~ 380-415 V 53 374 160 92 32 203 266 40 2900 26.1 DN65 1590 650 2240 400 310 345
SAR 32-15 30 40 3~ 380-415 V 53 374 160 92 32 210 274 40 2900 26.9 DN65 1590 650 2240 400 310 345
SAR 32-16-2 30 40 3~ 380-415 V 53 374 160 92 32 218 284 40 2900 27.8 DN65 1660 650 2310 400 310 350
SAR 32-16 30 40 3~ 380-415 V 53 374 160 92 32 225 292 40 2900 28.6 DN65 1660 650 2310 400 310 350

Product Video

Datasheet/Downloads SAR 32 Datasheet
