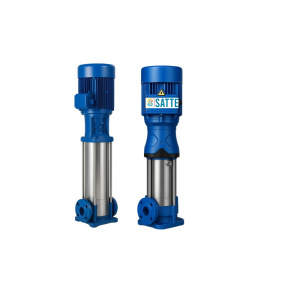

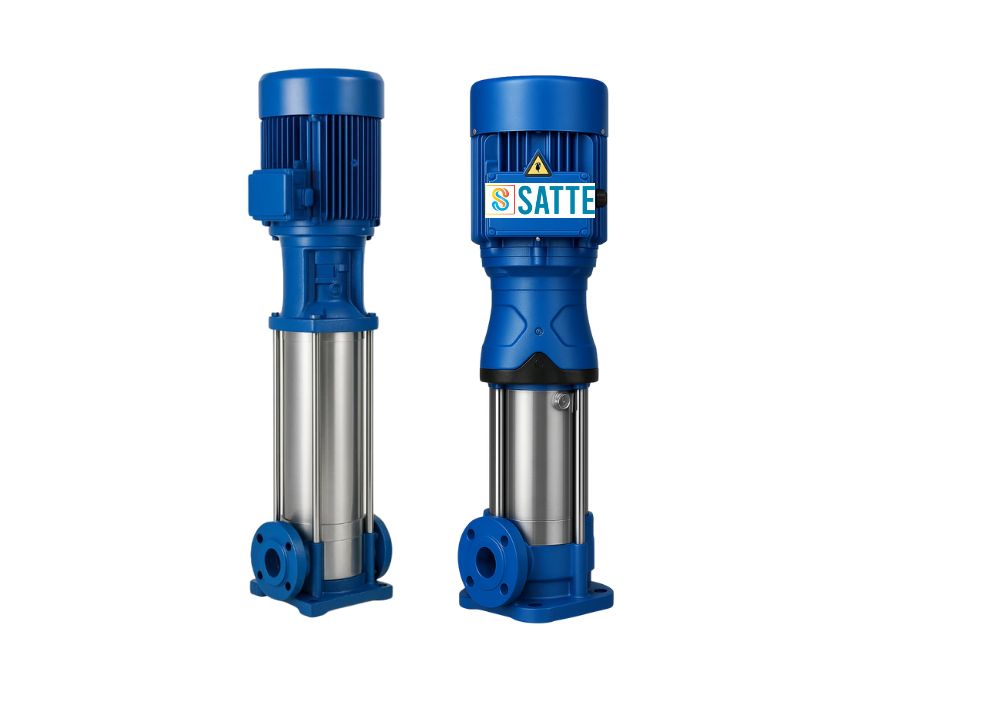

SAR 15



Typical Applications

  • Municipal water distribution - The pump can be used to supply water in urban and rural areas through municipal water supply systems.
  • High-rise buildings - Suitable for providing pressurized water to tall structures, ensuring consistent supply across different floors.
  • Agricultural irrigation - The pump can be employed in farming and agriculture to deliver water to crops, ensuring proper hydration for optimal growth.
  • Industrial processes - Suitable for transferring liquids in various industrial applications, such as manufacturing processes or chemical plants.
  • Commercial facilities - Used in settings like hotels, resorts, and commercial buildings to transfer liquids fordifferentpurposes.

Operating Conditions

  • PumpedLiquids:Thin,clean,non-explosive liquids without solid particles or fibres.
  • Liquid Temperature Range: -15°C to +120°C
  • Maximum Ambient Temperature: +50°C
  • Maximum Suction Lift: According to the NPSH curve plus a safety margin of 1m
  • Maximum Operating Pressure: 23 bar

Technical Data

Model
 Motor P2
Supply / voltage range
 Current at 50 Hz (A)
Motor eff. (%)
Rated flow Q (m³/h)
Head at rated Q (m)
Max. head (m)
Max. flow (m³/h)
Speed (rpm)
Max. press. (bar)
DN
 Dimensions (mm)
Weight (kg)
kW HP Full load In Start DOL Ist Soft start Iss B1 B2 B1+B2 D1 D2
SAR 15-2 2.2 3 1~ 220-240 V 14 61 41 74 15 22.2* 24.5 22 2900 2.4 DN50 397 290 687 190 155 42
SAR 15-3 3 4 3~ 380-415 V 5.9 38 18 85.8 15 34.9* 37.5 22 2900 3.7 DN50 452 345 797 197 165 50
SAR 15-4 4 5.5 3~ 380-415 V 7.7 50 23 86.8 15 46.9* 50.5 22 2900 5 DN50 497 355 852 230 188 59
SAR 15-5 5.5 7.5 3~ 380-415 V 11 68 32 87.8 15 58* 63 22 2900 6.2 DN50 562 390 952 260 208 76
SAR 15-6 5.5 7.5 3~ 380-415 V 11 68 32 87.8 15 69* 76 22 2900 7.5 DN50 607 390 997 260 208 77
SAR 15-7 7.5 10 3~ 380-415 V 14 91 42 88.5 15 81.1* 89 22 2900 8.7 DN50 652 390 1042 260 208 84
SAR 15-8 7.5 10 3~ 380-415 V 14 91 42 88.5 15 93.1* 102 22 2900 10 DN50 697 390 1087 260 208 86
SAR 15-10 11 15 3~ 380-415 V 20 142 61 89.7 15 117.7* 128 22 2900 12.5 DN50 875 500 1375 330 255 158
SAR 15-12 11 15 3~ 380-415 V 20 142 61 89.7 15 141.4* 154 22 2900 15.1 DN50 965 500 1465 330 255 161
SAR 15-14 15 20 3~ 380-415 V 27 190 82 90.5 15 163.7* 180 22 2900 17.6 DN50 1055 500 1555 330 255 174
SAR 15-16 15 20 3~ 380-415 V 27 190 82 90.5 15 188.7* 209 22 2900 20.5 DN50 1145 500 1645 330 255 178
SAR 15-17 15 20 3~ 380-415 V 27 190 82 90.5 15 200.8* 222 22 2900 21.8 DN50 1190 500 1690 330 255 190

Product Video

Datasheet/Downloads SAR 15 Datasheet
