SSJ

Typical Applications

• This pump is ideal for clean water and other non-corrosive liquids that do not react with the pump’s construction materials.
• Designed with self-priming capability, the jet pump can operate efficiently even when air is mixed with the water. Its user-friendly
  design and dependable performance make it well-suited for household applications, including water supply systems paired with
  small to medium pressure tanks, as well as for garden and allotment irrigation.
• For optimal performance and longevity, the pump should be installed in a protected or enclosed location, away from direct exposure
  to harsh weather conditions.

Operating Conditions

• Liquid temperature up to 60 °C
• Ambient temperature up to 40 °C
• Total suction lift up to 9m

Components

• Pump body
• Pump support
• Motor housing
• Impeller
• Diffuser
• Motor Shaft
• Mechanical Seal

Construction

• Cast iron
• Aluminum
• Brass
• Techno-polymer
• Carbon steel
• Ceramic/Graphite

Motor

• Two-pole induction motor (n=2850 r.p.m)
• Insulation Class B
• Protection IP44
• Continuous service S1
• Thermal protector for single phase

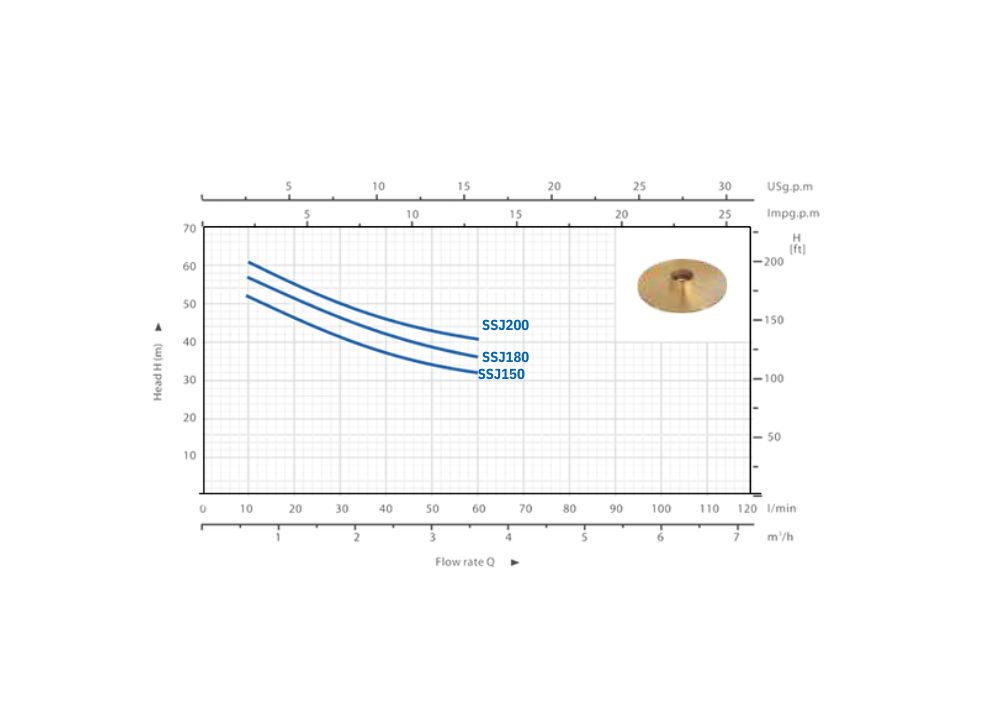

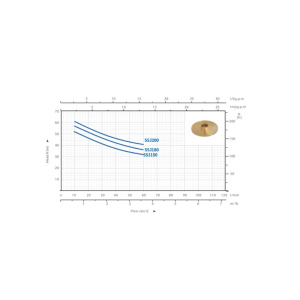

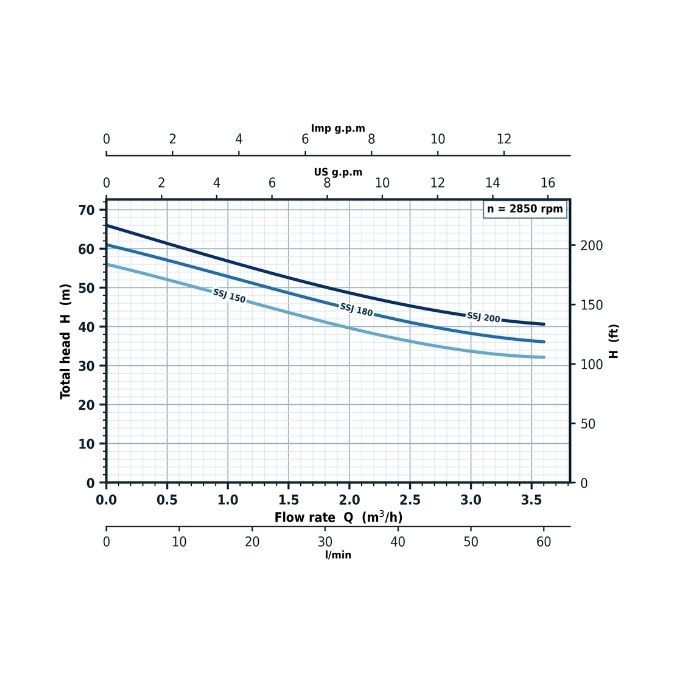

Technical Data

Product Video
