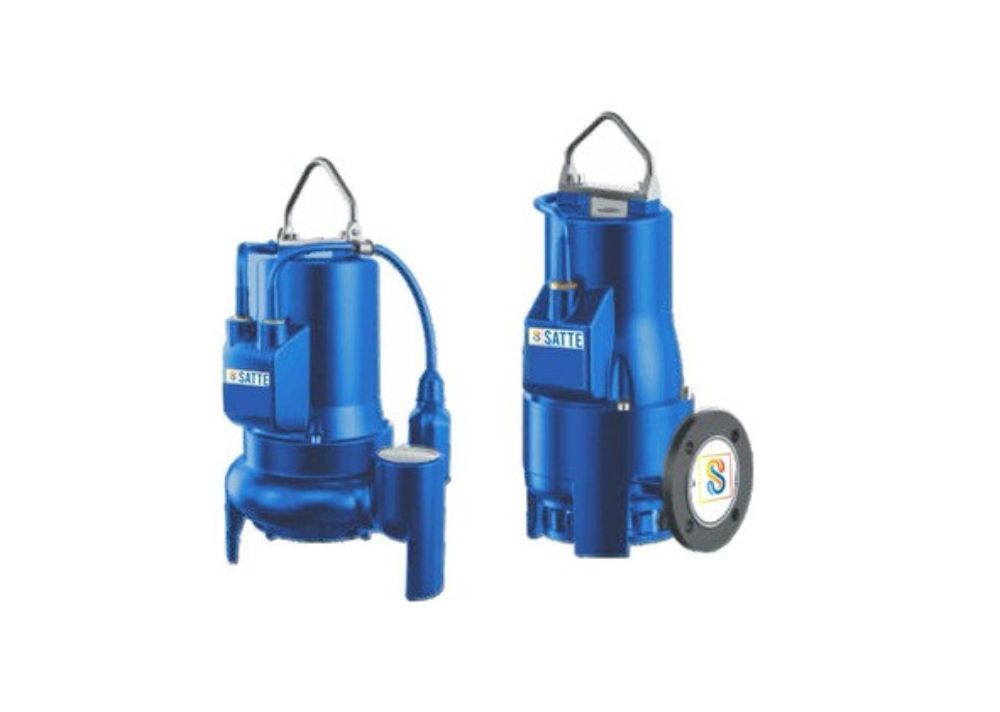

80SWQH

Typical Applications

• Suitable for dirty water that isn't chemically aggressive to pump materials.
• Reliable and easy to use for handling various dirty water situations.
• Ideal for clearing dirty water in domestic and industrial environments.
• Used for discharging domestic wastewater with solid particles up to
  40mm.
• Efficient for emptying collection traps containing particles up to 40mm.
• Effective for dewatering flooded areas, including basements, construction
  sites, and trenches.
• Suitable for draining water from agricultural fields or irrigation systems.
• Can be used in industrial settings for removing process water. Works well
  in wastewater treatment for transporting sludge and waste liquids.
• Ideal for transferring water from ponds, lakes, and other natural water bodies.

Operating Conditions

• * 5m maximum immersion depth
• * Liquid temperature up to 35°C
• * Maximum ambient temperature 40°C

Motor

• Two-pole induction motor(n=2850 r.p.m)
• Insulation Class B
• Protection IP44
• Thermal protector for single phase
• Three-phase 380V/50Hz

Components

• Pump body: Cast iron Motor
• Housing: Cast iron
• Impeller: Cast iron
• Motor shaft: AIS1304 SS
• Mechanical Seal: SIC(0.55~2.2kW)
• Alloy (3.0~7.5kW) 8m power cable with plug

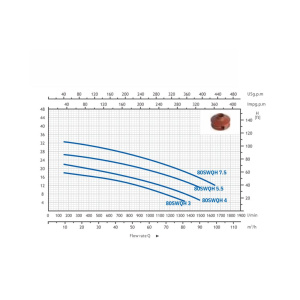

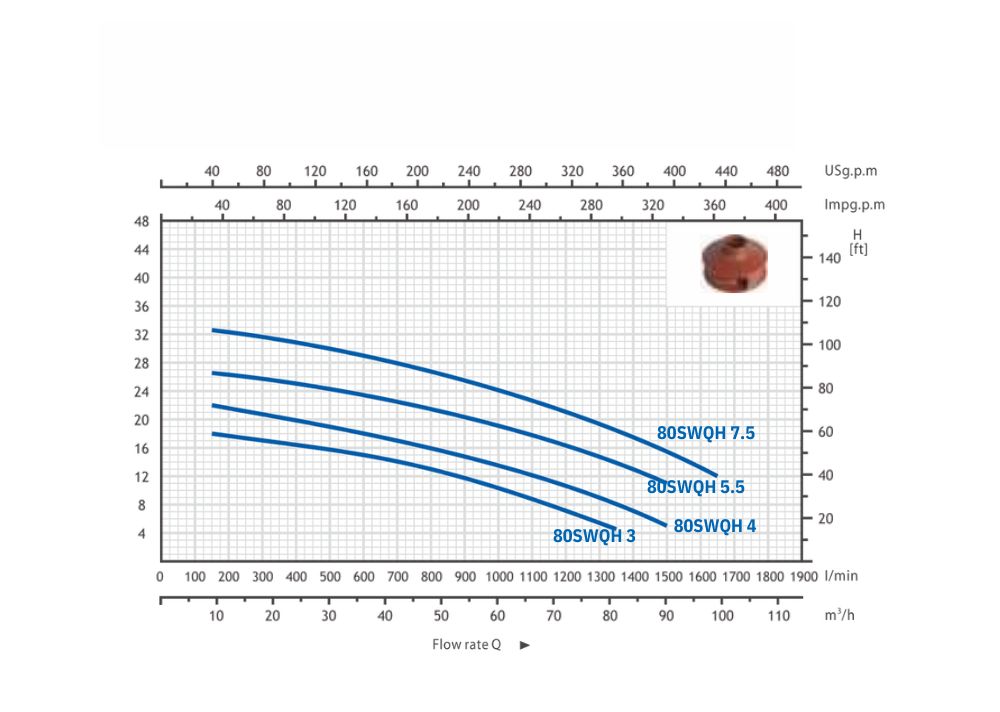

Technical Data
