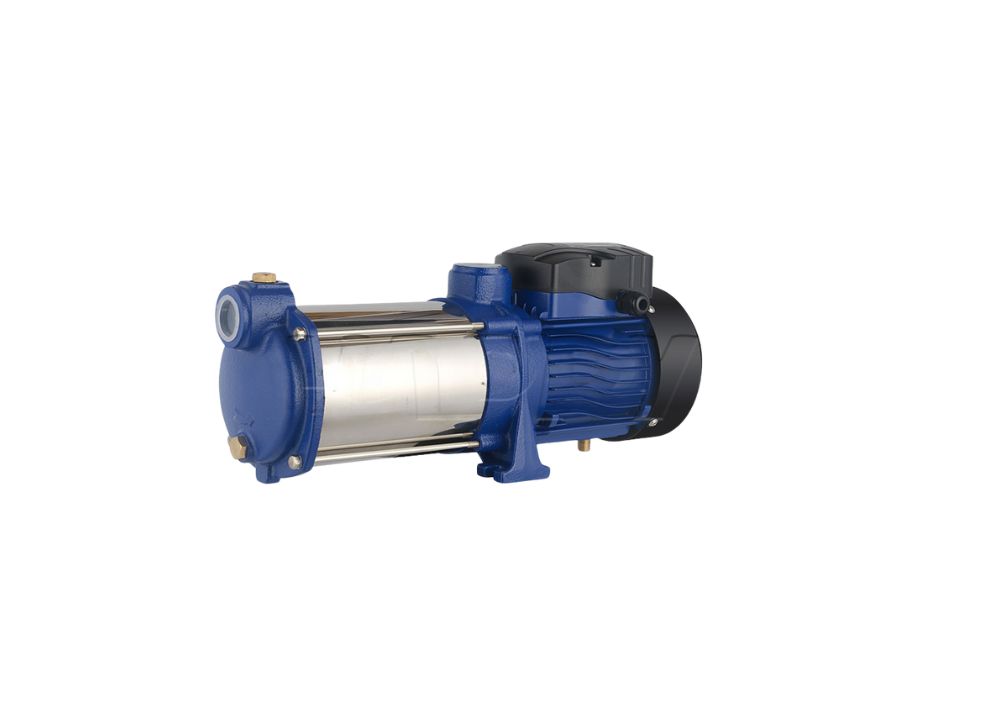

SM

Typical Applications

• Water Pressure Boosting - This pump is designed to
  work seamlessly with pressure sets, suitable for
  applications where increased water pressure is required
• Irrigation Systems - Agricultural applications, specifically
  irrigation systems, can benefit from the pump's ability to
  handle clean water with the presence of air.
• Commercial Buildings - The pump can be used in
  commercial buildings where there is a need for a
  reliable water supply and pressure.
• Industrial Use - Its capabilities make it suitable for
  certain industrial applications where clean water
  pumping is required.

Operating Conditions

• Max. Liquid Temperature: +60°C
• Ambient Temperature upto : +40°C
• Total suction lift up to: 8m

Motor

• Two-pole induction motor(n=2850 r.p.m)
• Insulation Class B
• Thermal protector for single phase
• Single-phase 220V/50Hz, 60Hz if request
• Three-phase 380V/50Hz

• Pump body: Cast iron + Stainless steel
• Pump support: Cast iron
• Motor housing: Aluminum
• Impeller: AISI304 SS
• Motor shaft: AISI304 SS
• Mechanical seal: SIC/Graphite

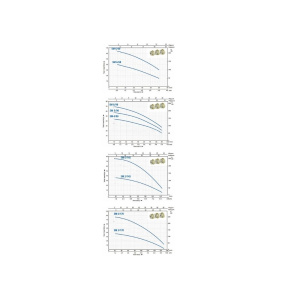

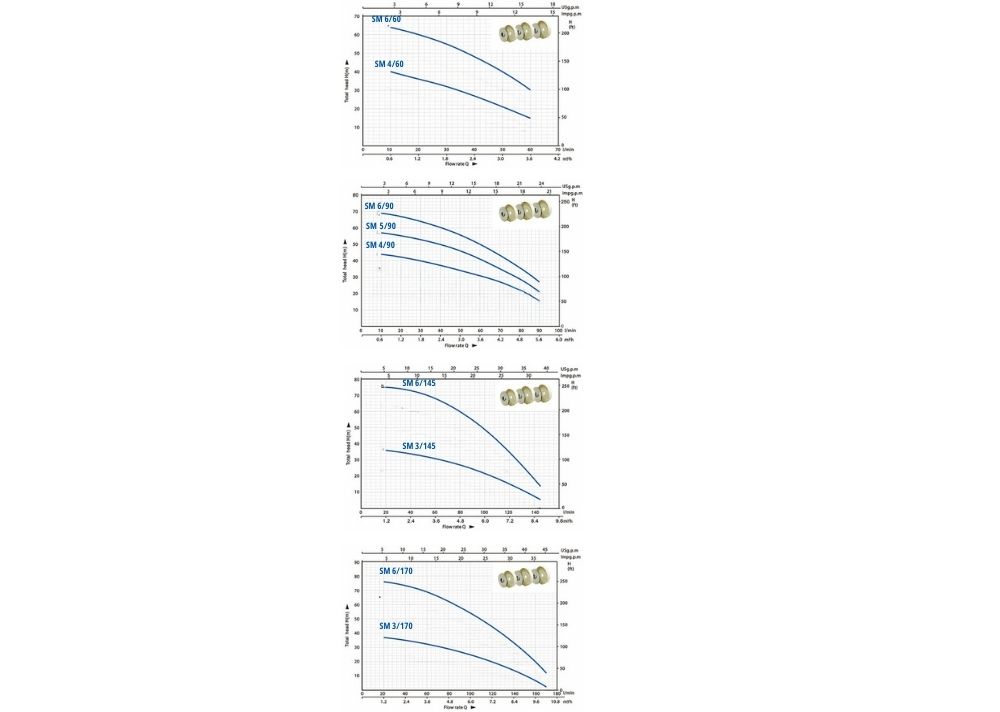

Technical Data
