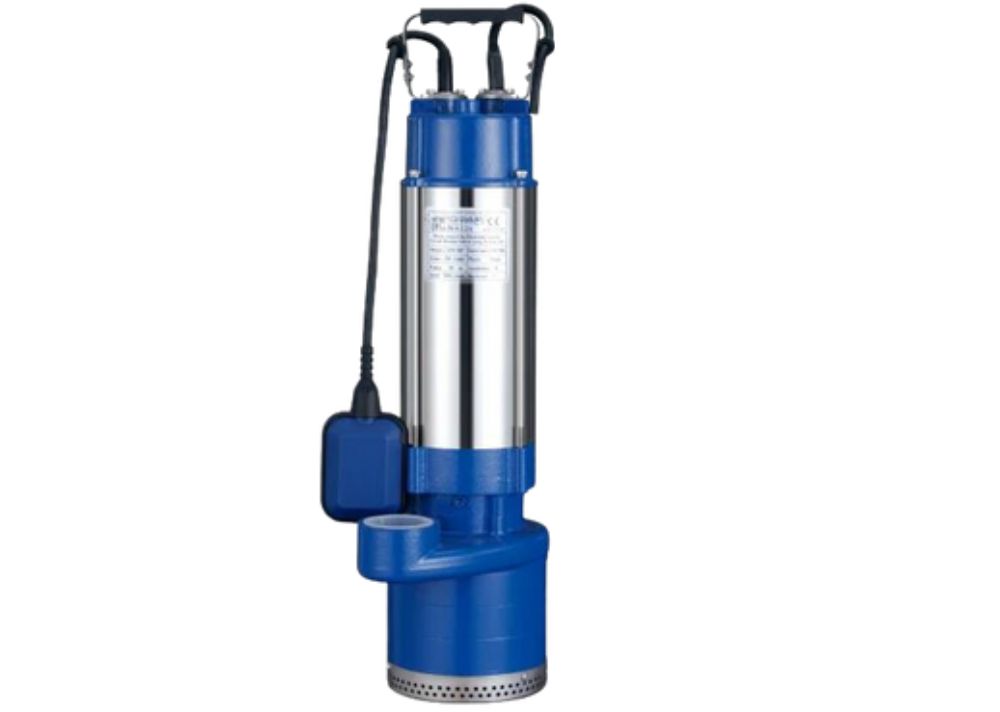

SWDP

Typical Applications

• Civil Engineering Projects: Ideal for water transfer and distribution in urban infrastructure development.
• Agricultural Irrigation: Perfect for flood and spray irrigation in large-scale farming.
• Gardening: Provides efficient water supply for landscaping and garden maintenance.
• Water Extraction: Suitable for drawing water from natural sources like lakes, rivers, and wells.
• Industrial Processes: Used in industries requiring high head and mid-flow rate for fluid transport.
• Aquaculture Systems: Ideal for maintaining water levels in fish farming operations.
• Firefighting Systems: Can be integrated into systems that require high-pressure water output for firefighting.

Motor

• Two-pole induction motor(n=2850 r.p.m)
• Insulation Class B
• Protection IP68
• Continuous service S1

ComponentConstruction

• Pump body- Cast iron
• Pump support- Cast iron
• Motor housing- Aluminum
• Suction filter- AISI304 SS
• Motor shaft- Carbon steel
• Mechanical seal- Ceramic/Graphite (0.5HP), SIC/Graphite
• Thermal protector for single phase

Operating Conditions

• Liquid temperature up to 60℃
• Ambient temperature up to 40℃
• Total suction lift up to 8m

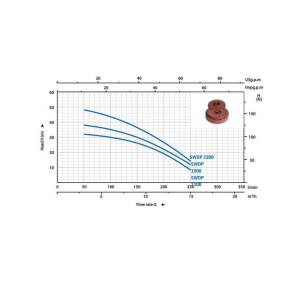

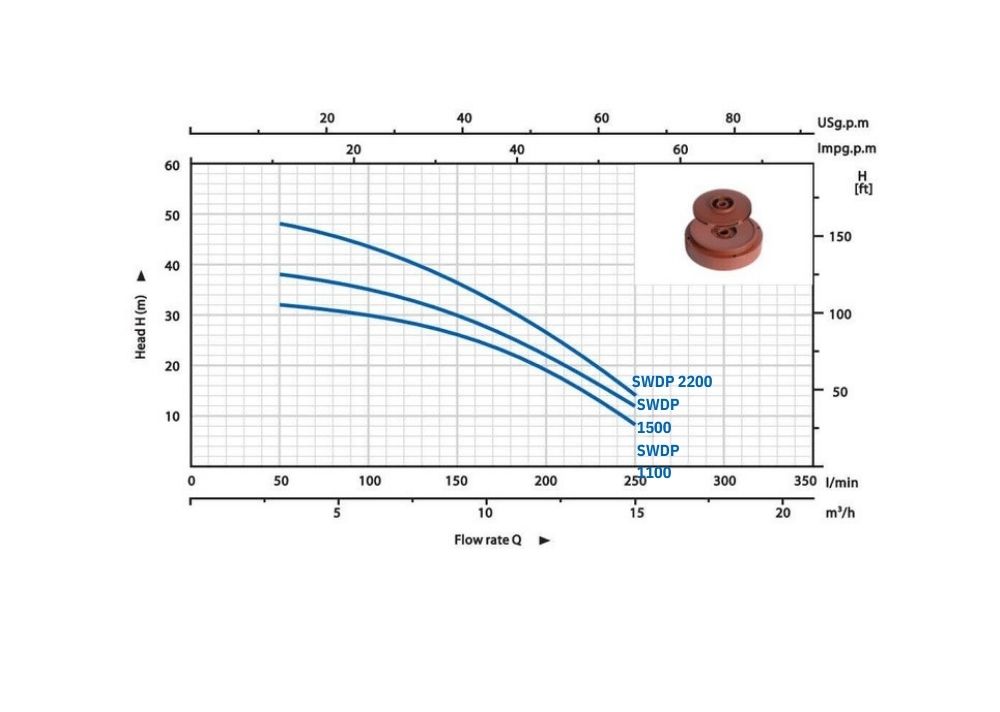

Technical Data

Product Video
