SPL

Typical Applications

•  Filter centrifugal pumps are specifically designed for
  swimming pool filtration systems. They are ideal for
  transferring large volumes of water (up to 45°C) at low
  pressure.
• For optimal performance and protection, the pump
  should be installed in a covered or enclosed area, away from
  direct exposure to harsh weather conditions.

Operating Conditions

• Pumped Liquid: Thin, clean non-chemically aggressive liquid without solid particles or fibers
•  Max. Fluid Temperature: +60°C
• Max. Ambient Temperature: -10°C - +40°C
• Insulation Class: F
• Enclosure Class: IP55
• Voltage:1x240V

Components

• Pump body
• Pump support
• Motor housing
• Impeller
• Motor Shaft
• Mechanical Seal

Motor

• Two-pole induction motor
• (n=2850 r.p.m) Insulation
• Class B Protection IP44
• Continuous service S1
• Thermal protector for single
  phase

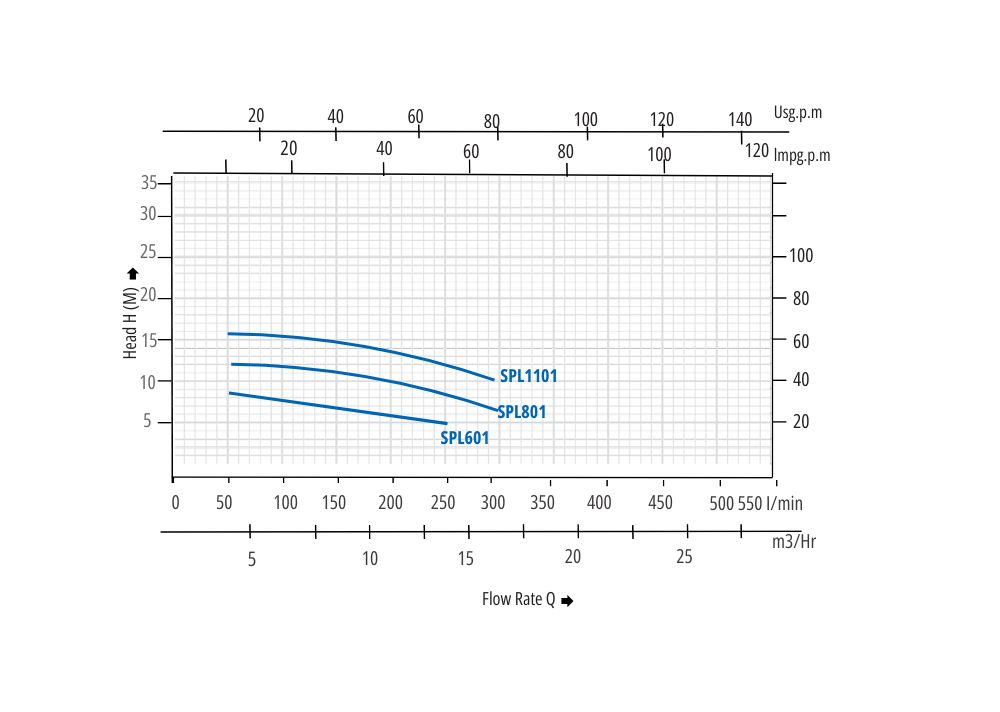

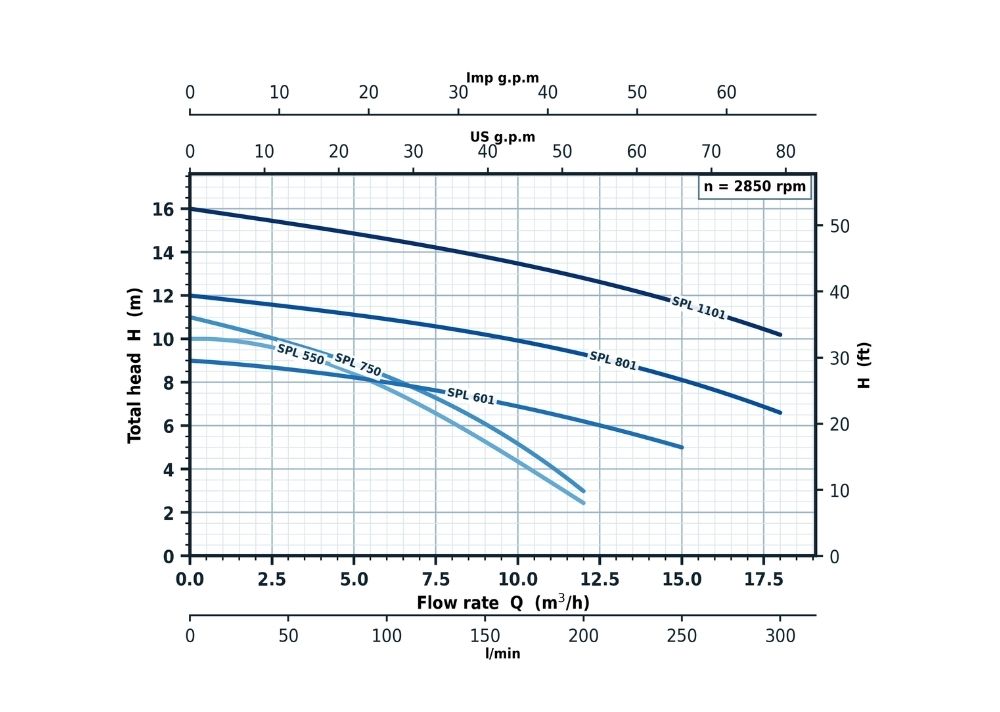

Technical Data
